ADSSMG01 With renewal booklet! Raspberry Pi introductory board ADSSMG01
Enjoy learning the basics of Raspberry Pi control with books! "Introductory Board for Raspberry Pi"!
* Renewal, JAN etc. have been updated. The previous product will be discontinued.

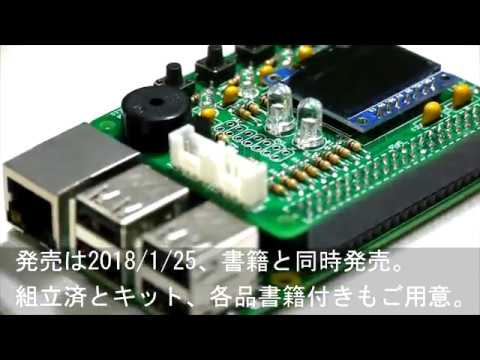

An introductory board for Raspberry Pi learning born in a project linked with Shell Script Magazine "Raspi Introductory Board".
There are electronic parts that beginners who use Raspberry Pi for the first time should know how to control.
4 red LEDs, 2 color LEDs, 4 push button switches, a monochromatic organic EL display, a piezoelectric speaker , etc.
In addition, although it is an introductory board, it is equipped with through-holes for expansion and two connectors compatible with the Grove system. is also perfect.
A detailed commentary article by technical writer Yoneda published in the linked book Shell Script Magazine is now available as a booklet ! It will be re-released as a set suitable for an introduction to Raspberry Pi electronic work, covering everything from assembly to Raspberry Pi control.
"Shell Script Magazine" (USP Research Institute) is a comprehensive UNIX/Linux/FreeBSD/shell script magazine launched in 2011 for server administrators and UNIX programmers. We introduce "sophisticated" engineers and engineers in various genres, not limited to shell programming.
Control methods you want to learn Basics of the basics
4 monochromatic LEDs, 2 color LEDs, 4 pushbutton switches, a monochromatic OLED display, a piezoelectric speaker, and other basic electronic components to learn how to control with a Raspberry Pi.
Ideal for prototyping, introductory board with excellent expandability
Although it is an introductory board, it is equipped with through-holes for expansion and two connectors compatible with the Grove system*, and it is designed to take advantage of expandability such as using servos, sensors, and actuators compatible with the commercially available Grove system, making it suitable for prototyping. is also a great introductory board.
* Grove system is a registered trademark of Seeed Technology Limited.
The source code for this product is also published on the following page.
Please use it together with the book.
The old product code below will be discontinued.
Product name: Raspberry Pi introductory board assembled Model number: ADSSMG01P JAN code: 4562469771441
Product name: Raspberry Pi introductory board kit Model number: ADSSMG01GK JAN code: 4562469771458
Basic specifications [Compatible models] Raspberry Pi Model B+ / Raspberry Pi 2 Model B / Raspberry Pi 3 Model B
[Switch] 4 pieces [Color LED (red, green, blue)] 2 [Single color LED (red)] 4
[Single color OELD panel] 128 x 64 dots [Grove connector] 2
[Piezoelectric speaker (buzzer)] 1
[External dimensions] H20xW65xD56mm (excluding protrusions)
[Weight] about 25g
[Operating environment] Temperature 0-45°C, Humidity 10-60% (no condensation)
[Country of origin] Made in Japan
[Warranty period] 1 year from purchase [Accessories] 4 spacers 8 screws Explanation booklet 1 copy Warranty card 1 copy (not included in the kit version)
(*Raspberry Pi body, case, and cables are not included.)
———Notes on handling this product———
・This product is for hobby use. Limited to personal use.
・The performance of the listed parts is the performance of the parts themselves, and does not guarantee the product life.
・Depending on your PC, Raspberry Pi and OS environment, you may not be able to use all functions.
・Depending on some applications, the functions of this product may not be available.
・This product has an exposed electronic circuit. Be careful of electric shock, and use parental supervision when children are using it.
・In the event that the customer suffers damage due to reasons attributable to our company in connection with the use of this product, we will compensate the customer for direct damage only, up to the sales price, and in any case, we will compensate the customer for damages exceeding the sales price. shall not.
・Specifications are subject to change without notice for improvement. Please be forewarned.
*Raspberry Pi body, case and cables are not included.
